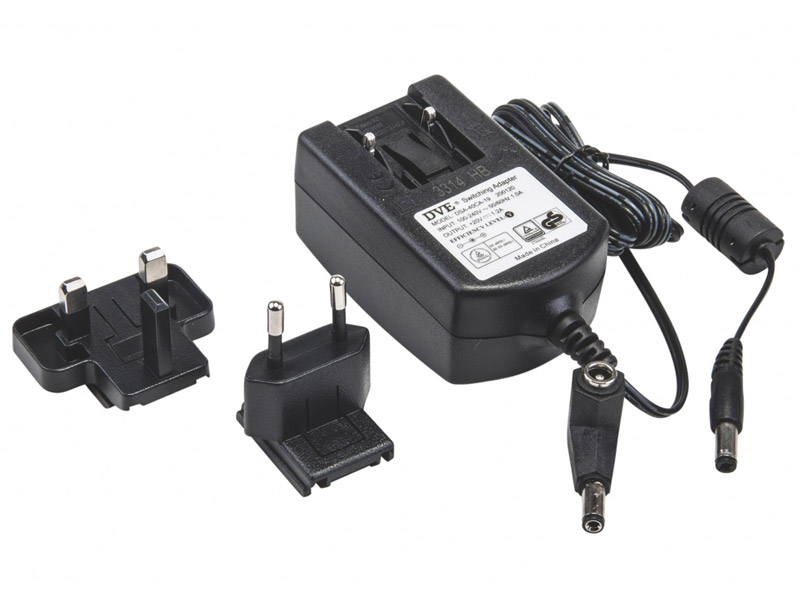

Global Invacom FibreIRS 20V PSU – Μονάδα τροφοδοσίας για:
- FibreIRS OTX
- FibreIRS OTO
- FibreIRS ODU32
- FibreIRS 2SAT ODU16
- FibreIRS 2SAT GTU Quattro and Quad
- FibreIRS GTU MKII Quattro and Quad
- FibreIRS GTU MKIII Quattro and Quad
- FibreIRS HF Optical Link Transmitter
- FibreIRS HF Optical Link Receiver
- DiSEqC Stacker De-Stacker
Τεχνικά Χαρακτηριστικά
Input Specification
AC input voltage: 90 – 264V AC (nominal 100-240V AC)
AC input frequency: 47 – 63 Hz (nominal 50/60 Hz)
Nominal AC input current: 1A max.
Output Specification
DC output voltage: +20V
Nominal load current: 1200 mA
Nominal output power: 24 W
Ripple and noise: 350mV p-p maximum
Turn on delay: 2 seconds max.
Over current protection: 5.5A max. (with auto recovery function)
Connectors
Input plug type: Wall mount, EU/UK - pin
Output plug type: Jack plug 5.5 x 2.1 x 12 mm
Environmental Specification
Operating temperature: 0 to 40°C
Storage temperature: -20 to 60°C
Dimensions
Size: 84.9 x 50 x 40.5 mm
Weight: 200g max.
